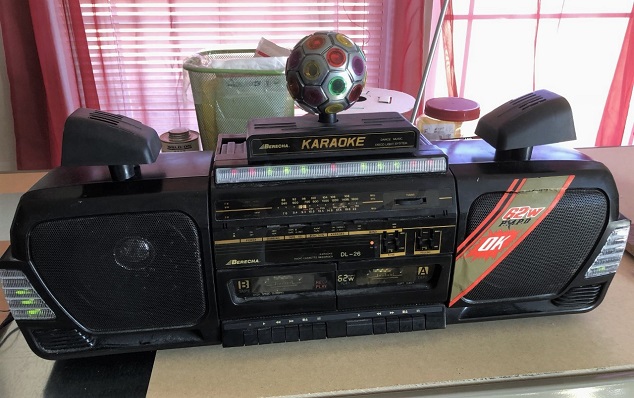

Of all the discolites, this might be the rarest. I can't even find it with a Google search, except of course for the one I won on Ebay, lol. It's a 30-inch long, 3-piece boombox with 2 tape decks, a rotating disco ball on top, 2 side projector lights, an LED meter running across the top, and LED meters on each speaker. The lights put on quite a show! The speaker woofers are 4 ohm QaoSheng units made in China. The tweeters are fake, they're just silver pieces of plastic.
Construction and design seems to be in line with and similar to Lasonic, the Dynasty wheely, and other big/black/empty boxes, except the deck itself is even cheaper if that is even possible.
This box seems to use all Chinese chips that I’ve never heard of. Although some Chinese products are definitely junk, much of what they sell today can't be underestimated. In other words, made in China stuff can be junk but it's certainly not to be presumed. Most products today are made in China, even parts for cars, apple products, etc so they definitely can produce quality products. But I digress. These parts however were produced at a time when made in China was not a phrase to be advertised or proud of so take from that what you may. Hopefully, these never fail because I am virtually certain that none of the parts are replaceable. If they fail, they are gone. Something can probably be done to replace the original amp chip with something else by retrofitting it in there, since you only need to extract the pre-amp signal to get a new amp module to work, but the rest of the IC’s are integral to the circuits and can’t be extracted and with no pin-pin equivalents available, failure of any of those IC’s will brick the device of that feature (tape/radio).
Amp chip: CD7232GS
Pre-Amp Equalization (for tape): CD7668GP
Tuner:
KIA6040P: AM/FM - IF amp
KIA6043S: FM Multiplex
CD7335GS: FM Front End
