The CSC950 is one of the most common Crown boomboxes. It was used by Taylor Swift in her "Shake It Off" video.

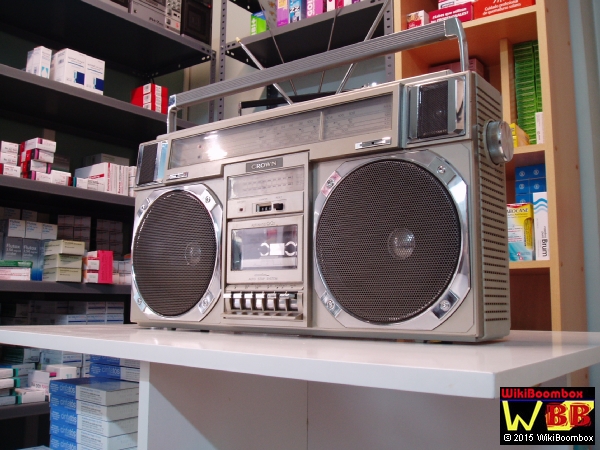

Crown CSC-950

This CSC-950 ghettoblaster was a very popular model from Crown. It was first introduced in 1980 and built for 1 or 2 more years after that. It has big LED meters, 2 antennas, and lots of chrome, which gives it a very classic look. Taylor Swift carried one in her Shake It Off music video. Oddly, it was never officially imported into the United States. But you can find one on Ebay Germany quite often.

The owners manual (gebrauchsanleitung) can be purchased HERE(external link)
And the service manual can be purchased HERE(external link)

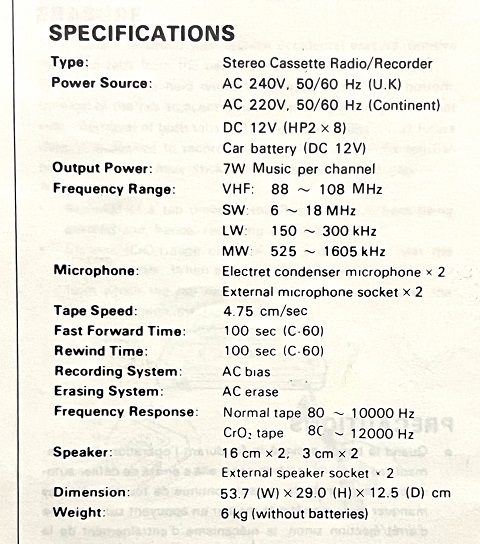

SPECS:

  • 537mm wide, 290mm tall, 125mm deep
  • 16cm woofers, 3cm tweeters
  • Weight 5.7KG without batteries
  • Year of introduction: 1980
  • Output: 3.4 watts per channel at 10% distortion (on batteries). 2x7W "music power".
  • Power consumption: 26W
  • 4-band tuner (FM/MW/LW/SW)
  • 220/240V AC, or eight D-cell batteries
  • Tape deck frequency response 80Hz to 12kHz
  • Wow and flutter: 0.17% (Play, JIS WRMS)
  • Separate bass and treble
  • Loudness
  • Stereo Wide
  • Sleep

CSC-950L image courtesy of Chordeater
CSC-950L image courtesy of Chordeater






There was a similar model called the CSC-945 which has analog instead of LED meters.
