Top of the line 3-piece boombox from Aiwa

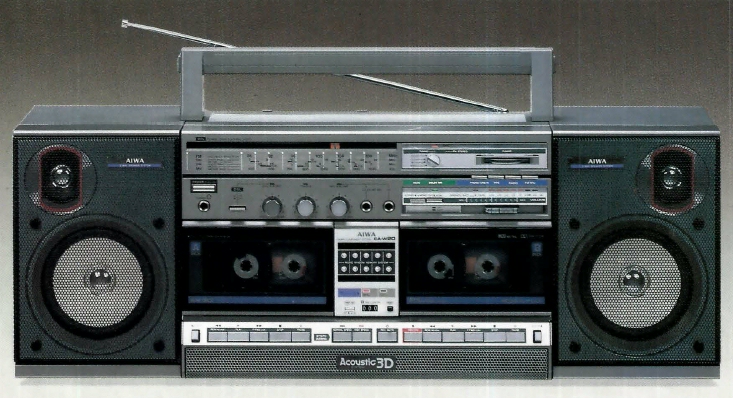

Aiwa CA-W20

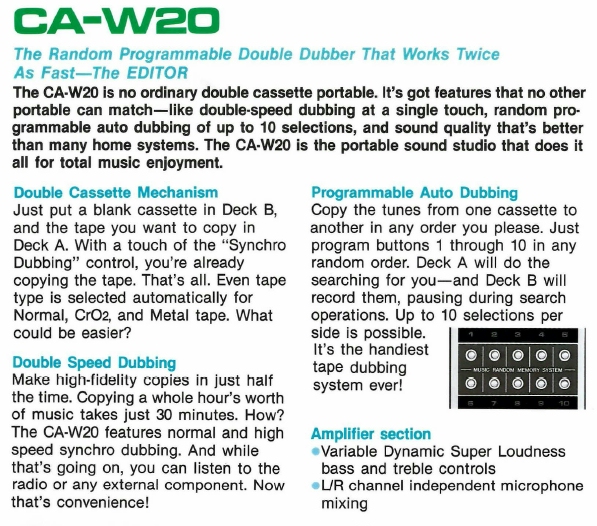

The CA-W20 was the top of the line 3-piece boombox from Aiwa. It is 63cm long and was introduced in 1983 or 1984. It features a dual deck with programmable auto-dubbing. The 10 buttons between the decks allow you to select the sequence of the songs you want to dub. Wow and flutter is very low (0.04% WRMS). Frequency response is very good (30 to 16,000 Hz when using Metal tape).

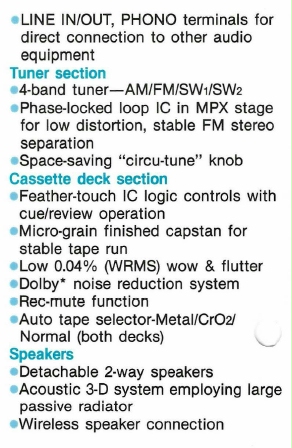

The woofers are 12cm and the tweeters are 5cm. And there is a large passive radiator underneath the tape decks. It is powered by air coming from ports in the detachable speakers. If the speakers are detached, then the passive radiator will not function. Please be aware that the passive radiator has a foam surround, so you will need to renew the foam if it hasn't been done already.



Model variations:
CA-W20C
CA-W20H
CA-W20G
CA-W20U
