Panasonic SG-J500

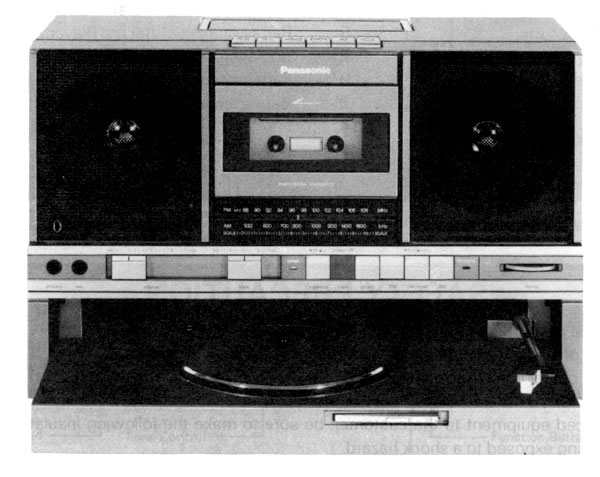

Panasonic SG-J500 Portable Stereo AM/FM STEREO RADIO WITH CASSETTE TAPE DECK AND RECORD PLAYER SG-J500
For a unit that includes a built-in turntable, radio, cassette deck, and stereo speakers, it is quite compact, and probably about as small as you can make it with all these features, so we are calling it a large mini. Quality is not top notch, in fact, it's quite light and feels a bit cheap but being that it was probably a "value" featured item, the quality is probably in line with what it's intended customer audience was.

Specifications:

AMPLIFIER SECTION

Loudness Control: +8 dB at 100 Hz (Volume at -30 dB position

FM TUNER SECTION

• Frequency Range ................ 88 MHz ~ 108 MHz
• Intermediate Frequency (lF)..... 10.7 MHz
• Sensitivity ................. 6.5 pV (at 1 kHz, 30% Mod.) at 75.Q
• Stereo Separation........... 34 dB (at 1 kHz, 60 dB, 40 kHz)

AM TUNER SECTION

• Frequency Range .......................... MW: 525 kHz ~ 1605 kHz (571 m ~ 187 m)
• Intermediate Frequency (lF)............... 450 kHz
• Sensitivity .............................. MW: 220 uV/m (1 MHz)

TAPE DECK SECTION

• Deck System Auto stop
• Track System: 4-Track, 2-Channel
• Head Type .... Hard Permalloy (Rec/Play), Double Gap Ferrite (Erase)
• Recording System AC Bias (50 kHz)
• Erasing System ...... AC Erase (50 kHz)
• Tape Speed ............ 4.8 cm/sec.
• Frequency Response 50 Hz ~ 12 kHz
• Signal/Noise Ratio...... 50 dB (DIN)
• Wow & Flutter ....... 0.2% (WRMS)

PHONO SECTION

8Turntable System...... Belt drive

• Turntable Platter........ 16cm
• Turntable Speed 33-1/3 rpm and 45 rpm
• Phono-Motor....... Electro-Governor DC Motor
• Cartridge......... Ceramic cartridge (EPC-13STH)
• Stylus............ Sapphire tip(EPS-41ST)
• Stylus Pressure Range. 5.9g

SPEAKER SYSTEM

• Speaker .............. 12 cm Dynamic Speaker
• Input lmpedance........ 6 ohm

GENERAL

• PowerConsumption......... 15W
• Power Supply ....... AC 1 10V/120V/220V/240V, 50/60 Hz
  • Battery: 12V (8 x UM-1, "D" size battery)
  • Car battery: optional car adaptor (RP-952)
• Dimensions (W x H x D) ............. 395 mm X 273 mm x 209 mm
  • (15-35/64) x (1O-14/45") x (8-7/32")
• Weight ....................................... 5 kg (without batteries) (11 lbs)
  • 5.8 kg (with batteries) (12.7 lbs)
