General MG-345

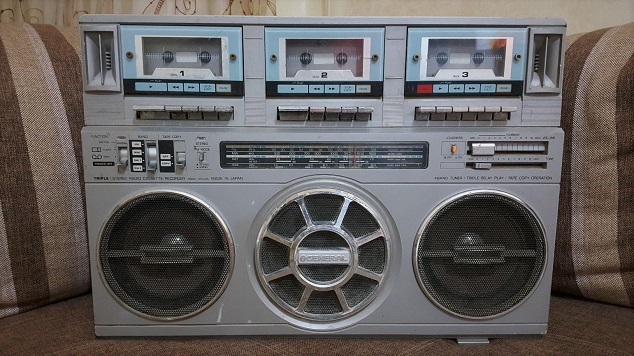

Wow! Three cassette decks, 5 speakers, and wood sides!! The General MG-345 is a rare ghettoblaster with a cool retro style. The speaker in the middle is actually a passive radiator.

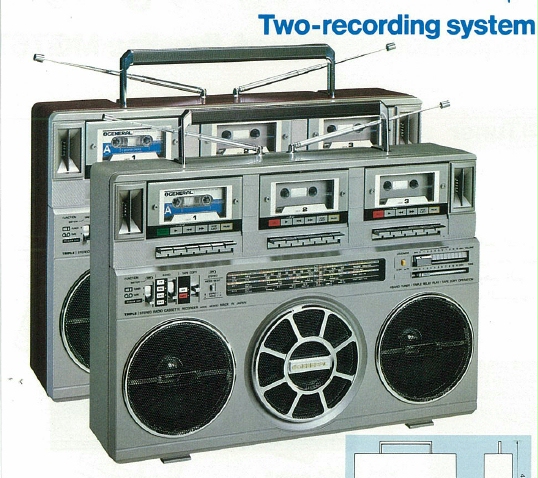

There are two versions, the MG345 and the MG345D. The MG345D has recording capability on both decks 2 and 3. The MG345 can record on deck 3 only.

  • Dimensions: 568mm wide, 462 tall (with handle up), and 163mm thick.
  • Speakers: Two 16cm woofers with foam surrounds, one 18cm passive radiator with foam surround, and two 20cm tweeters.
  • Power requirements: Universal AC voltage, or ten D-cell batteries.
  • Power consumption: 40 watts.
  • Total power output: 13 watts at 1kHz at 10% THD. 36 watts peak music power.
  • Weight: 8.4 kg without batteries.
